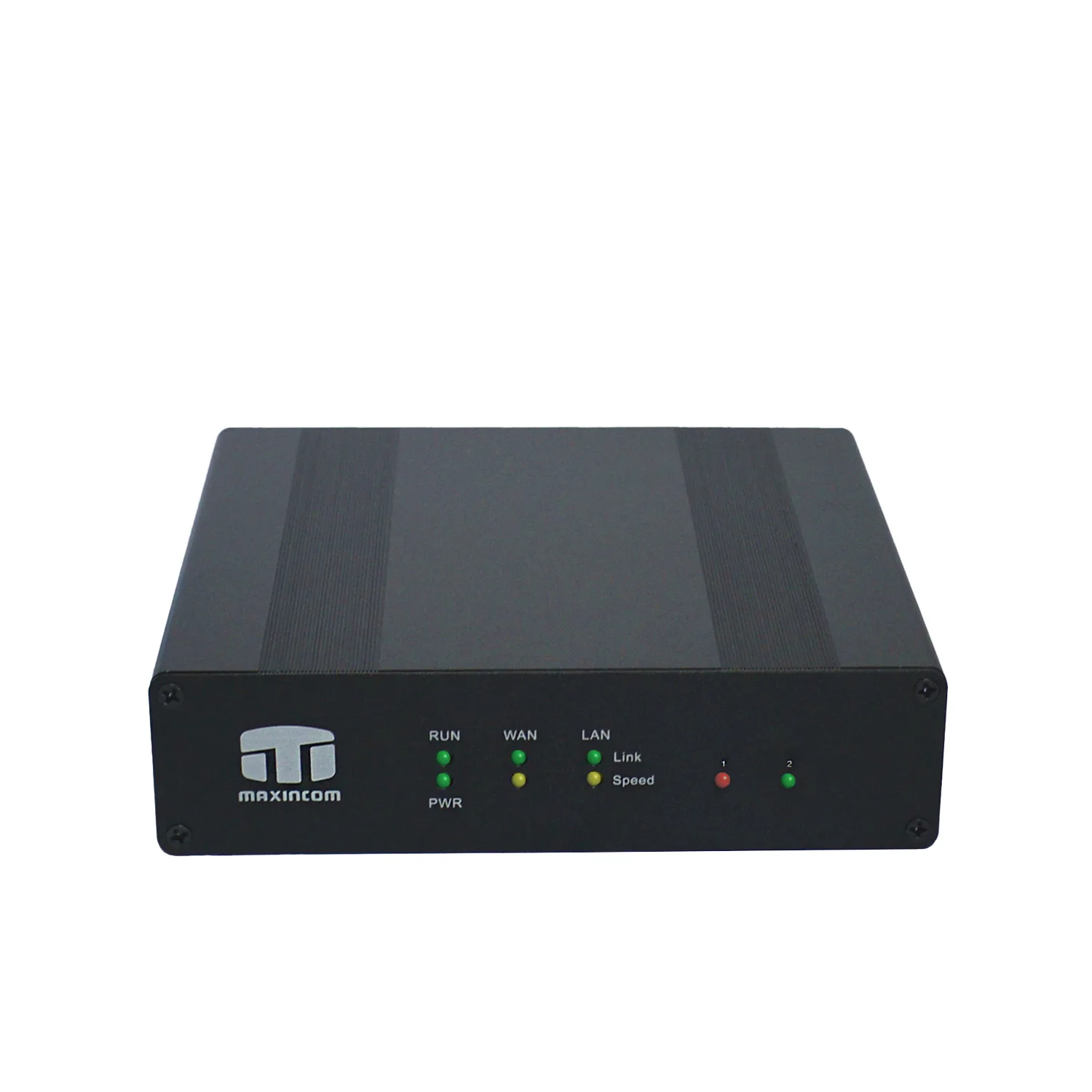

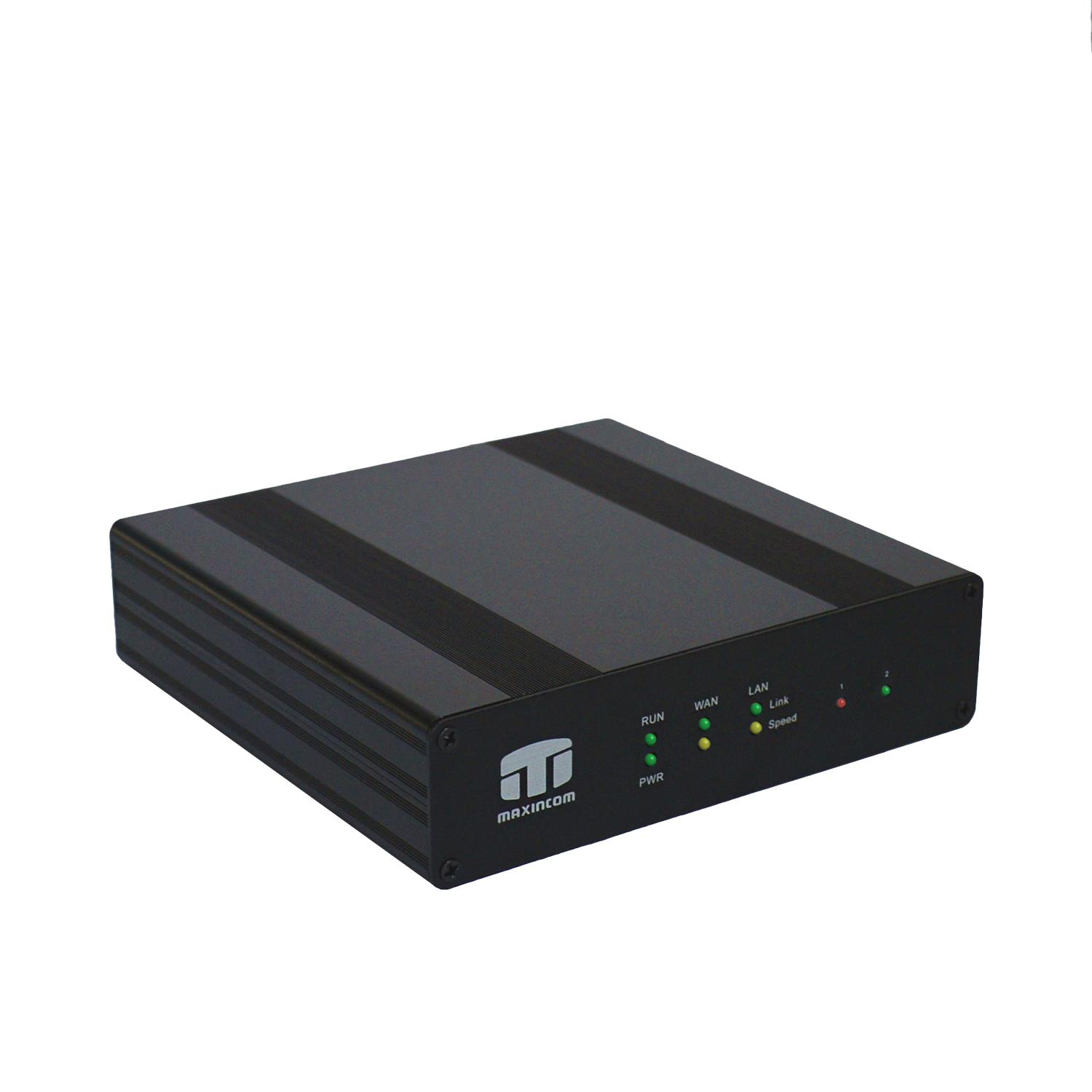

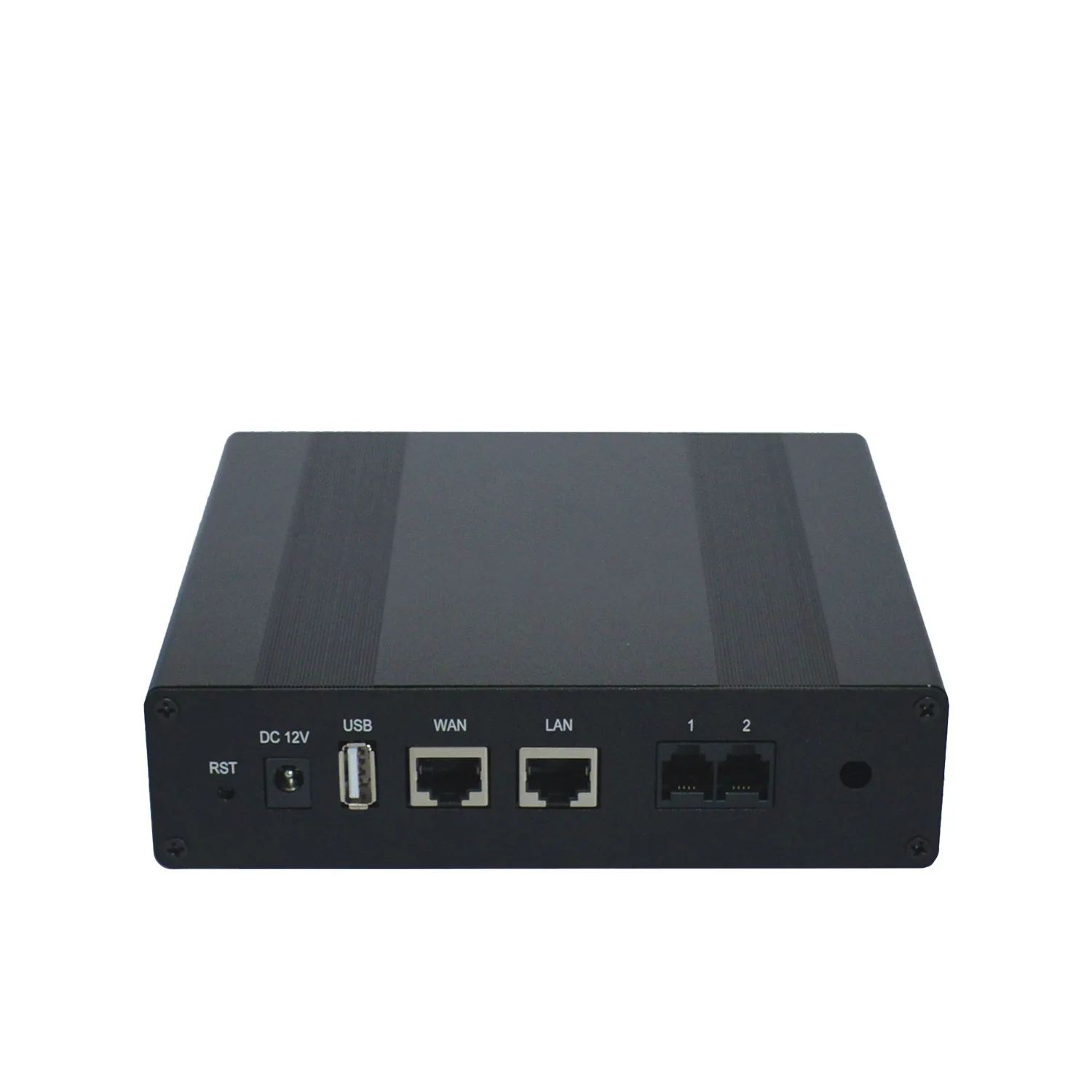

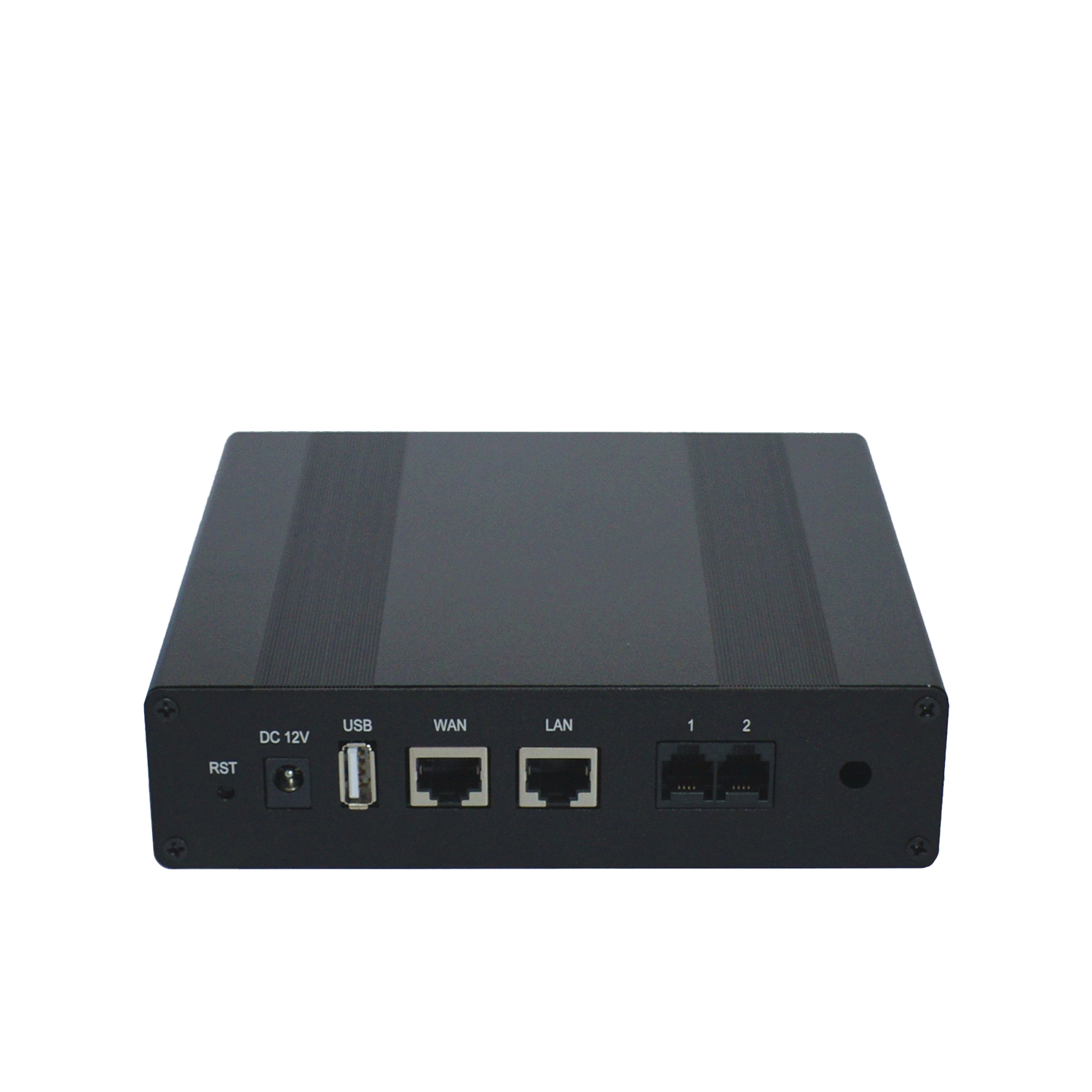

MUC1002 is an embedded IP PBX specially designed to bring enterprise-grade Unified  Communications and Security protection features to small business in a easy-manage fashion. It offers up 20 users which offers the flexibility of integration of PSTN lines, GSM Channels and VoIP trunks, and supports a maximum of 10 concurrent calls. It offers a solution for converged voice, video, data, fax, and mobility applications out of the box without any extra license fees or recurring costs.

User 20
Max Concurrent Calls 10
Max Analog Ports 2
Max Cellular Ports 1
LAN 1 10/100Mbps
WAN 1 10/100Mbps
IP Services DDNS, DHCP, Firewall, OpenVPN, QoS, Static IP, Static Route, Static NAT, STUN, VLAN, APRN, NTP, SSH, HTTP/HTTPS Web Server
USB 2.0 1
Protocol SIP (RFC3261), IAX2
Transport Protocol UDP, TCP, TLS, SRTP
Audio Codec G.711 (alaw/ulaw), G.722,G.726, G.726aal2,G.729A, GSM, ADPCM, Speex, ilbc
Video Codec H263, H263P, H264, MPEG4
DTMF RFC2833, SIP INFO, In-band
VoIP Trunks 16
VoiceMail 3000 minutes
IVR 8
Automatic Call Recording Yes
T.38 Fax Yes
SMS to Mail/Mail to SMS Yes
Reminder Call Yes
Power Supply AC100~240V/50~60Hz (DC 12V, 1A)
Dimensions (L x W x H)(mm) 159 x 154 x 40
Weight 0.55kg
Environment Operation Range: 0 ℃ – 40 ℃, 32 ℃ – 104 ℃ F, Storage Range: -20 ℃ – 65 ℃, 4 ℃ – 149 ℃ F, Operation Humidity: 10% – 90%, No Condensation
